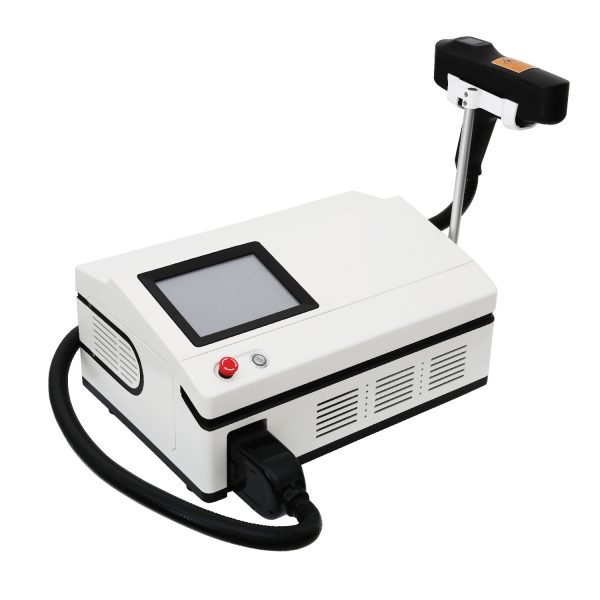

532+1064nm professional tattoo removal equipment

Professional tattoo removal equipment

The use of laser instantaneous launch of high energy effective crushing and removal of lesions in the organization of the pigment, the corresponding pigment group rapid expansion and an instantaneous burst of fragmentation, most or all of the skin pigment group immediately pop up in vitro, part of the dermal pigment group can be broken into Macrophages phagocytosis of small particles, macrophage phagocytosis, and ultimately through the human lymphatic system circulation from the body.

Tattoo Removal Description

How does it work?

  1. Laser technology has greatly improved the ability to treat melanocytic lesions and tattoos with the rapidly pulsed Q-switch.
  2. The laser treatment of pigmented lesions and tattoos is based on the principle of selected photothermolysis.
  3. The Q-switch laser Systems can successfully lighten or eradicate a variety of benign epidermal and dermal pigmented lesions and tattoos with minimal risk of untoward effects.

System Characteristics:

  1. unique water cycling technology, so it can be used directly without preheating.
  2. Microcomputer controlled, so it is very precise and safe.
  3. Plastic shell features anti-static and anti-interference; with a touch color screen, it is easy for operating.
  4. Smart cooling system, which protects the machine from working within the average temperature.
  5. The internal structure of the modular design, so it is convenient for testing repair, and maintenance.

Treatment Range :

1.1064nm laser can penetrate the deep layer of the skin, so it is easily absorbed by blue, black, and green color pigment; therefore it is very suitable to treat pigment disease in the dermal layer .for example, getting rid of tattoos, eyebrow tattoos, and pigmentation disease.

2.532nm laser can penetrate the light layer of the skin; therefore, it is very easily absorbed by the brown, red, and deep-brown color pigment. For example,  it is eliminating freckles, pigment spots, and other light-color tattoos.

Tattoo Removal Technical
Laser Type Q switch Nd: YAG Laser
LCD 7*Color Touch Screen
Laser Wavelength  1064nm / 532nm
Pulse Width 10 ns
Frequency  1-6 Hz
Cooling method Water cooling system
Power supply   AC 110V/ 10A / 60 Hz  AC 220V/ 5A / 50 Hz
Dimensions  38cm*30cm*25cm
Net Weight 15 Kg
