Q-Switched Nd:YAG Tattoo Removal Laser System

The Q-Switched Nd: YAG laser delivers light of specific wavelengths in very high peak energy pulses which are absorbed by the pigment in the tattoo and result in an acoustic shockwave. The shockwave shatters the pigment particles, releasing them from their encapsulation and breaking them into fragments small enough for removal by the body. These tiny particles are then eliminated by the body.

Since the laser light must be absorbed by the pigment particles, the laser wavelength must be selected to match the absorption spectrum of the pigment. Q-Switched 1064nm lasers are best suited for treating dark blue and black tattoos, but Q-Switched 532nm lasers are best suitable for treating red and orange tattoos.

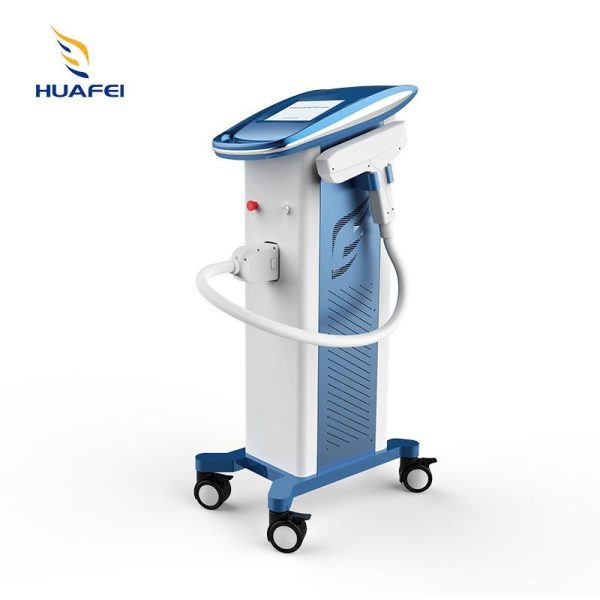

Q-Switch Nd: YAG laser Tattoo Removal Machine

How does it work?

Laser technology has dramatically improved the ability to treat melanocytic lesions and tattoos with the rapidly pulsed Q-switch.

The laser treatment of pigmented lesions and tattoos is based on the principle of selected photo thermolysis.

The Q-switch laser Systems can successfully lighten or eradicate a variety of benign epidermal and dermal pigmented lesions and tattoos with minimal risk of untoward effects.

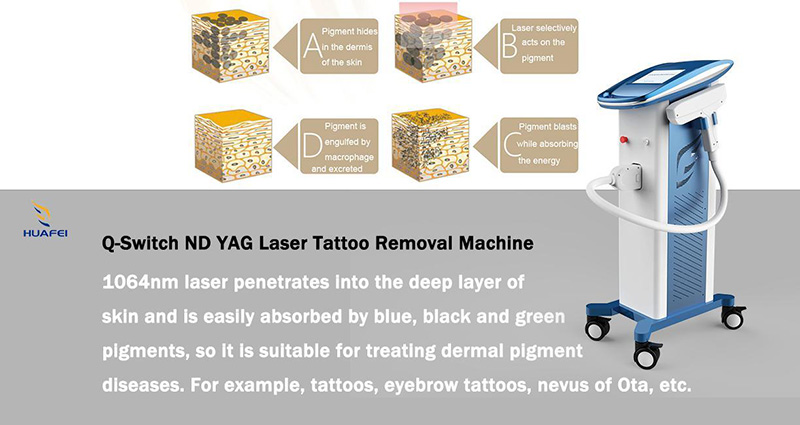

Q-Switched NdYAG Laser System1

System characteristic

  1. unique water cycling technology can be used directly without preheating.
  2. Microcomputer controlled, so it is very precise and safe.
  3. Plastic shell features anti-static and anti-interference; with a touch color screen, it is easy for operating.
  4. Smart cooling system, which protects the machine from working within the normal temperature.
  5. The internal structure of the modular design, so it is convenient for the test, repair, and maintenance.

Treatment range

1.1064nm laser can penetrate the deep layer of the skin, so it is easily absorbed by blue, black, and green color pigment; therefore it is very suitable to treat pigment disease in the dermal layer .for example, getting rid of tattoos, eyebrow tattoos, and pigmentation disease.

2.532nm laser can penetrate the light layer of the skin; therefore, it is very easily absorbed by the brown, red, and deep-brown color pigment. For example, eliminating freckles, pigment spots, and other light-color tattoos.

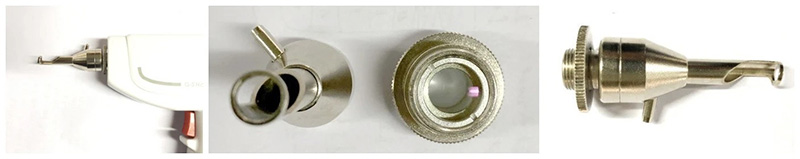

Q-Switched NdYAG Laser System3

Technical Specification

Laser Type Q switch Nd: YAG Laser
LCD 8” color touch screen
Laser Wavelength 1064nm/532nm
The Maximum laser output energy 2200mJ/1100mJ
Pulse width 12ns±2ns
Frequency 1~6Hz
Cooling method Water + Air cooling system
Power supply AC220V/5A,AC110V/10A

Before & After Treatment Case

Q-Switched NdYAG Laser System5
