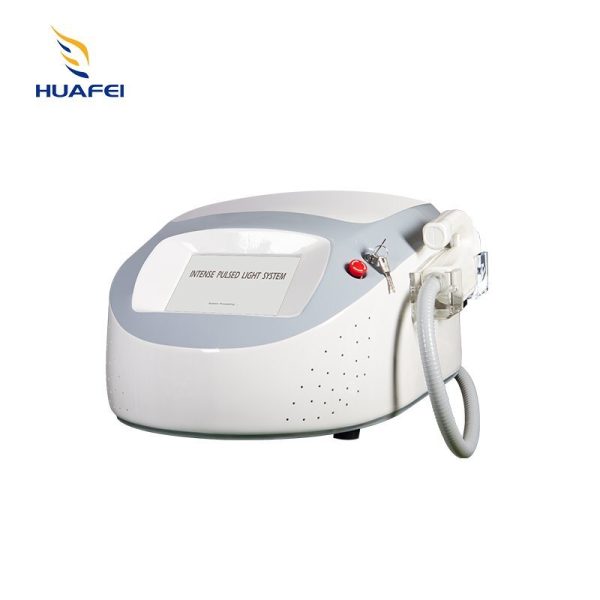

Portable E-Light+RF IPL System

IPL is short for Intense Pulse Light, and also known as IPL for skin rejuvenation. It is a kind of strong pulse of wide spectrum wavelengths of intense pulse light, which can penetrate from the epidermis to the dermis.

It makes full use of selective absorption of light to remove or erase wrinkles, shrink pores and remove hair. Detailed, the pigment within the lesion group will be instantly heated which makes the lesion vessel atrophied or blocked, then stimulates the collagen reproduction and prompts elastic fibers to rearrange, that is what we called IPL for skin rejuvenation.

Portable E-Light RF IPL Hair Removal Beauty Equipment


  1. Benign pigment problem: Spots removal, freckles, chloasma, color fleck, age pigment, chorioplaque and partial pigmentation.
  2. Vascular problem: Capillary vessel expansion, reddened face, and blood streak.
  3. Acne and pimple removal.
  4. Skin rejuvenation: Shrink pores, blackhead removal, anti-wrinkle, skin whitening, and skin elasticity enhancement.
  5. Hair removal: Unwanted hair removal.
    750-1200nm: Hair Removal (Skin Type IV)
    690-1200nm: Hair Removal (Skin Type III)
    640-1200nm: Hair Removal (Skin Type I & II ); Wrinkle Removal
    590-1200nm: Pigmentation and Vascularity; Skin Rejuvenation
    560-1200nm: Vascular and Pigmented Lesions; Skin Rejuvenation
    530-1200nm: Skin Rejuvenation; Superficial Vascular Lesions
    510-1200nm: Superficial Vascular Lesions
    480-1200nm: Light Pigmentation
    430-1200nm: Acne

Portable E-Light+RF IPL System2 Portable E-Light+RF IPL System3


  1. Portable IPL is controlled by a color touch screen and is proven safe and reliable. It is easy to operate.
  2. Portable size with lightweight and easy for carrying.
  3. Portable IPL can, to a great extent, improve the treatment efficiency by using the 10*45cm big spot treatment.

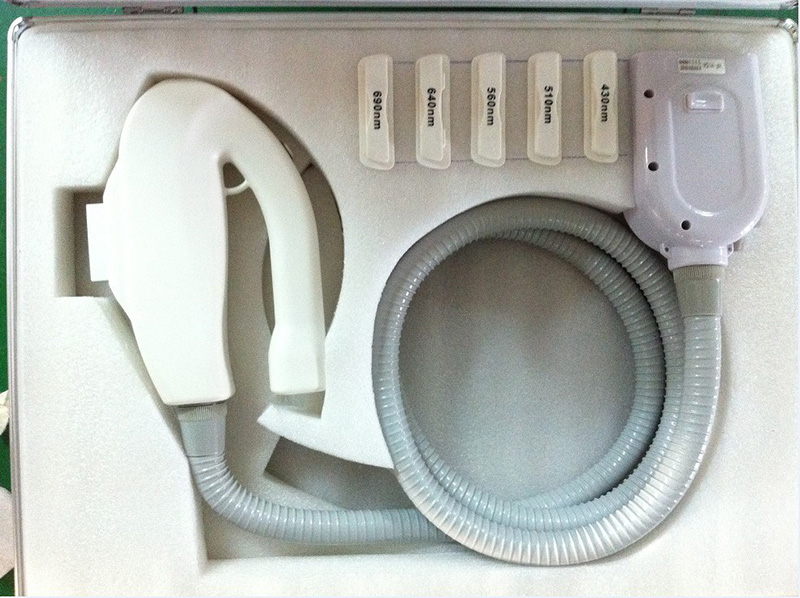

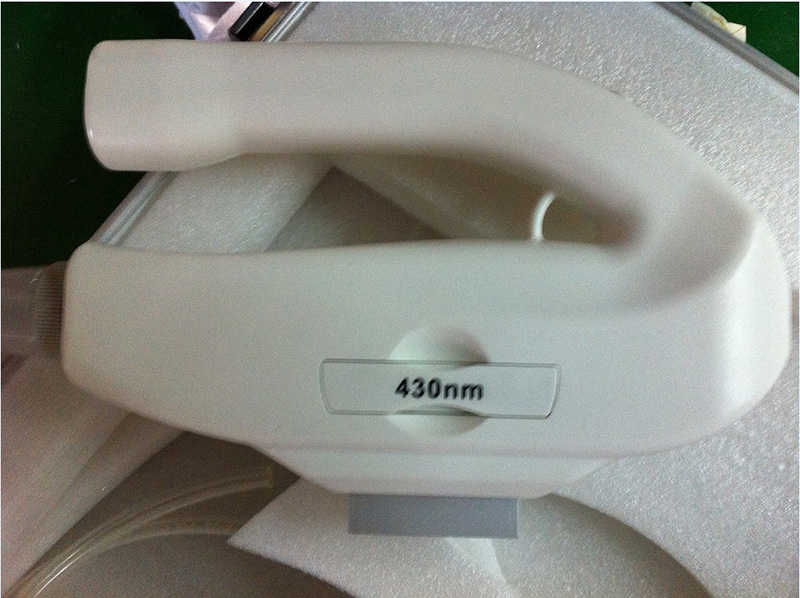

  4. This treatment handle is equipped with different wavelength filters which can accomplish all the treatments.
  5. Sapphire can cool the filter.
  6. Portable IPL adopts a superheat abstractor and automatic temperature controlling system.
  7. The tail design of the plug-in handle is very convenient and easy to change.

Technical Specification

Operation mode: E-light,RF
Screen:  8” color touch screen

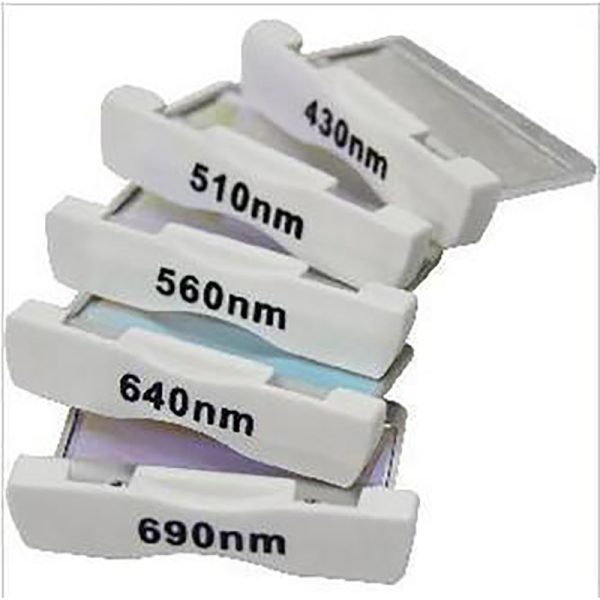

Filters wavelength: 430nm,510nm,560nm,640nm,690nm(Standard);

530nm,580nm,750nm (Options)

Energy density:  10~45J/cm2
Pulse Width: 1~10ms
Pulse delay: 5~95ms
Pulse number: 1~4 pcs
Pulse period: 1~3s


RF mode:

RF frequency:1MHz
RF energy:1~50J(Body)
RF energy on E-light system:0~100J
RF output timeon E-light system:0~2s
Cooling system: Semiconductor cooling +Water cooling + Air cooling system
Power supply: AC220V/7A, AC110V/14A
Size: 41*54*31cm(Excluding trolley)

Before & After Treatment Case

Portable E-Light+RF IPL System4
